| 原産地: | 中国(本土) | 適用: | オーディオとビデオ | 銘柄: | xingkaitai | モデル番号: | D-sub | タイプ: | アダプター | 性: | 女性男性 | ジェンダー: | 女性男性 | ピン: | 9152537 |
包装
| 包装: | ビニール袋スリーブ包装カートン包装材と |
仕様

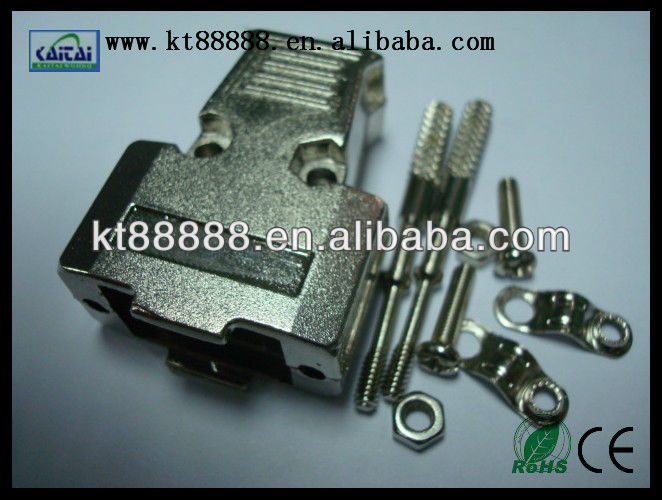

9 pin metal connector d-sub VGA metal shell
Brand/Series | : | xingkaitai |
Cable Exit Angle | : | Straight / Right Angle/45 degree |
Pin count | : | 9.15.25.37.50P |
Material, Backshell | : | Die-Cast metal (Zinc Alloy) |
color | : | gun black (black nickel), pearl nickel, bright pearl nickel. Imitation gold;chrome |
Special Features | : | EMI/RFI Shield, Grommets |
Characteristic of products | pro-environment not easily embroidery, not changeful form stable performance; | |
Screws | Jack screw Thread 4-40 UNC | |
Product certification | ROHS | |
Product use | computer, communication, medical equipment, cable, aviation, digital, machinery and equipment, game, etc | |
Descriptions | ||
Easy to assemble DB9/HDB15 two piece metal backshells are a great choice for the "do it yourself" consumer. Die cast zinc alloy construction is practically indestructible and offers maximum protection against harmful EMI/RFI. When used with shielded cable, a complete ground can be made between connector shells. According to the customer's request to die sinking, price concessions, the manufacturers, factory direct sale . | ||
Applications | ||
Serial data transmission Data networks Instrument control Device management
| ||
packing instruction | ||
Bulk or single packaged units plastic bags points set with inner packing carton packing. | ||
