| 原産地: | 中国(本土) | 適用: | オーディオとビデオ | 銘柄: | dosin | モデル番号: | UHF (PL259) to BNC adapter | タイプ: | アダプター | 性: | 男性 | impedance: | 50 ohm | body: | zinc alloy /brass | body plating: | gold /nickel plated | business type: | OEM&ODM | lead time: | 7-10 days | rohs level: | ROHS I compliant | ROHS compliant: | yes |
包装
| 包装: | 通常は100箱あたりのpc、 カートンごとの個1000。 プライベート梱包とラベルサービスは利用できるあなたの要件ごとに |
仕様
Product Description

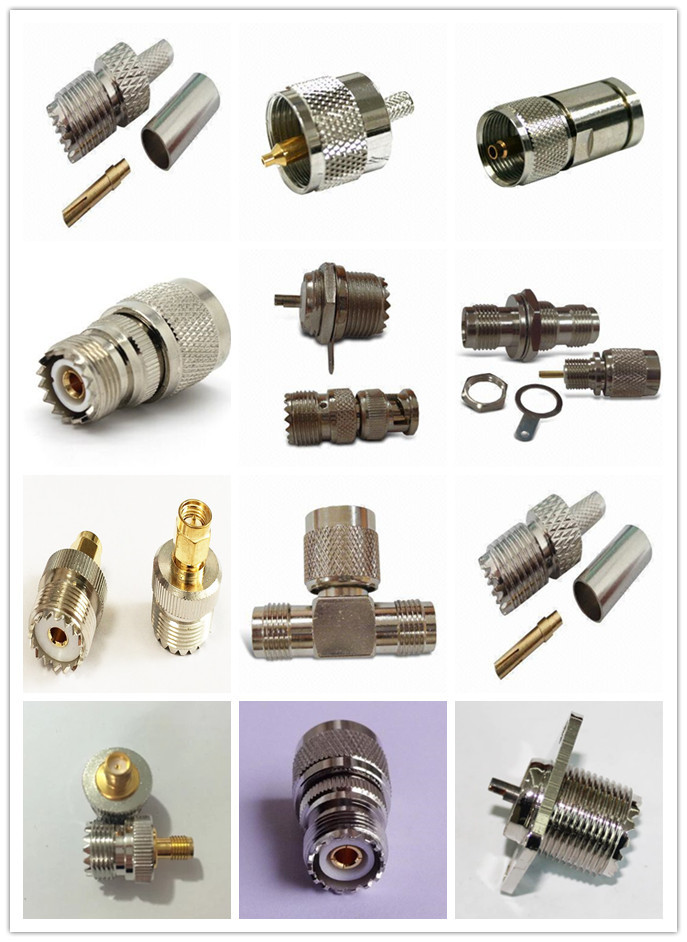

UHF coaxial RF connectors were one of the first RF connector series to be developed.. The 5/8"-24 thread coupling and clamp, crimp, twist-on, and solder terminations give the UHF the flexibility that has kept it one of the most popular coaxial connectors over the years.
Specification:
brass body ,nickel plated
Impedance :50 ohm
Polarity:standard
Gender :male
Technical characteristics:
Temp. range................-40~+85
Impedance.................50 Ω
Frequency Range...........DC 0-2.5GHz
Working Voltage...........750V
Dielectric Withstand Voltage........ 1,000 Vrms (at sea level)
Contact resistance
Center Contact............≤5mΩ
Outer Contact.............≤5mΩ
Insulation resistance ....≤5000mΩ
Durability(mating)........ 500 (cycles)
packing :
1)usually 100 pcs per box,1000pcs per carton.
2)private packing and label service are available as per your requirement
shipping :
1)The parts from us are sure to have quality warranty,and they are double tested before shipping.
2)The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3)We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
Our Services
(1)Our company sees the products’ quality as the most important thing in a business. In order to meet high quality, our quality controlmanagers stick to the following duties:
1.Ensure all the raw materials are qualified, in-process and completed products.
2.Stick to the quality standards.
3.Influence the process of quality programs.
4.Related duties as QC for inspecting and auditing.
5.100% test before the delivery of final products.
(2)We also customize special products to meet our clients' requirements. Just show us your drawing, sample or indicated details, we will produce it Or please kindly send us your specific engineering parameters such as IMD, VSWR, plating etc. We will discuss with you about the details and please feel free to contact us.
Company Information
Dongguan Dosin Hardware Electronics Co.,Ltd is a leading microwave/RF component manufacturer and designing company, the products include rf coaxial connector, cable assembly, wireless antenna, adapter and WLAN accessory etc, they are widely used in GSM ,CDMA,3G communication system, satellite orientation, base stations , radar and military fields. Web is : www.dosinconn.com, if you have any needs,pls feel free to tell us.
