| 原産地: | 中国(本土) | 適用: | RF | 銘柄: | huading | モデル番号: | Smb-k3b | タイプ: | SMB | 性: | 男性 | 材料: | 銅 |
包装
| 包装: | 紙の箱や顧客ごとの要件 |
仕様

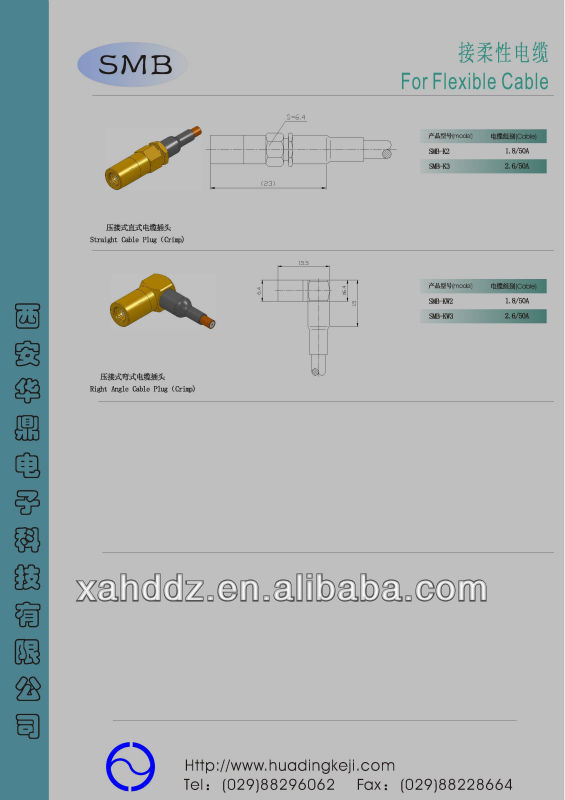

1>. SMB-JFD
SMB female connector for flexible cable
SMB is one kind of low power miniature RF coaxial connectors with snap-on coupling mechanism. The characteristic of connectors is in small volume, light weight, excellent electrical performance, easy to use. They’re widely used in connection with RF coaxial cable in RF circuit of radio communication, test instruments, meter, radio station, TV station, the base station of the microwave system.
2>. Advantage:
- High quality material
- Competitive price:1-2USD
- Professtional manufacturer: Passed the factory audit
- Various models and specifications
- E-catalog is available
- Testing report is provided
- Rohs approved
Applicable Standard
MIL-C-39012
CECC 22130
IEC 60169-10
3>. Technical Specification
Temperature Range | -65 to +155 Deg.C |
Impendance | 50 Ω , 75 Ω |
Frequency Range | DC to 4 GHz Max(50 Ω); DC to 2 GHz Max(75 Ω) |
Insertion Loss | 0.1 dB Max @ 1 GHz |
VSWR Straight | ≤1.25 |
VSWR Right angle | ≤1.45 |
Working Voltage | 335 V @ SEA LEVEL |
Withstand Voltage | 1000 V @ SEA LEVEL |
Contact resistance | Center Contact ≤6 mΩ |
Contact resistance | Outer Contact ≤1 mΩ |
Insulation Resistance | ≥1000 MΩ |
Durability(mating) | ≥500 cycles |
4> Other information
| Package | Plastic bag and gift box and then use the carton box. It can also be changed according custom's requiremnt. |
| payment terms | TT/West unio/PayPal. |
| lead time | 2-3 weeks after confirm the order. |
| MOQ | No limit for thr first order. |
| After-sale service | We provide comprehensive after-sales service, including quality service, how to assemble, We focus on customer needs in every details. Please contact us if you have any query about our products. |
| Quality guarantee | Quality first is the spirit of our company. We use the best quality to ensure the long term cooperation with our clients. All products we sold out are strictly inspected by our QC&QA department. |
5>. Service:
- Welcome to visit our factory,we will arrange car to pick you up if you are in China
- All products will be checked strictly by our QC before delivery
- All products will be double checked by our sales before delivery
- Good package: plastic bag+carton box+foam
- After service is available
