| 原産地: | 中国(本土) | 銘柄: | sipun | モデル番号: | Suk-2.5 | タイプ: | ねじ込み端子 | 線式の範囲: | 2.5mm | レール: | din | 動作温度: | -25℃~55℃ | 材料: | pa66 | 電圧: | 800v | 電流: | 32a | サイズ: | 6*43*41 |
包装
| 包装: | カートンのパッキング |
仕様
UK2.5B frame type terminal block
Descruotion:
1.General specifications SUK-2.5X terminal blocks Compliance with international standards : IEC60947-7-1.
2.Wire range : rigidity wire : 0.2-0.4mm, flexibility wire : 0.2-2.5mm.
3.Terminal can used in TH35 and G32 rail.
4.Insulation material is PA66, Antiflaming and anticorrosion.
5.Small volume than suk-2.5, complete range of articles.
6.self locking function, crimping fastness.
Specifications:
| Model Number | SUK-2.5X |
| T/W/H(mm) | 6*43*41 |
| Clamping screw | M3 |
| Torque | 0.5-0.8NM |
| Stripping Length | 7mm |
| Rated Voltage | 800V |
| Reted Current | 32A |
| Cross Section | 2.5mm2 |
| Wire cross section, solid core | 0.2-4mm2 |
| Wire cross section, stranded | 0.2-2.5mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | CE/RoHS/EX |

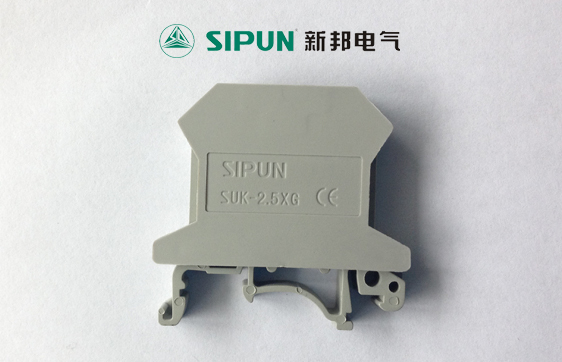

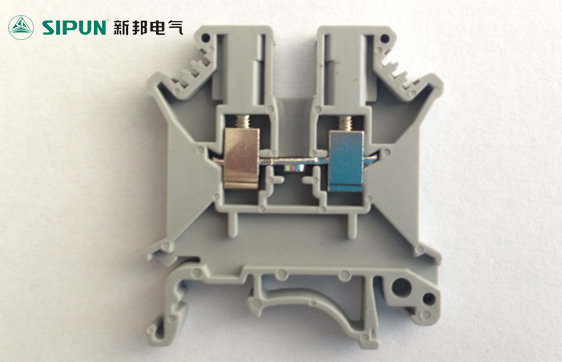

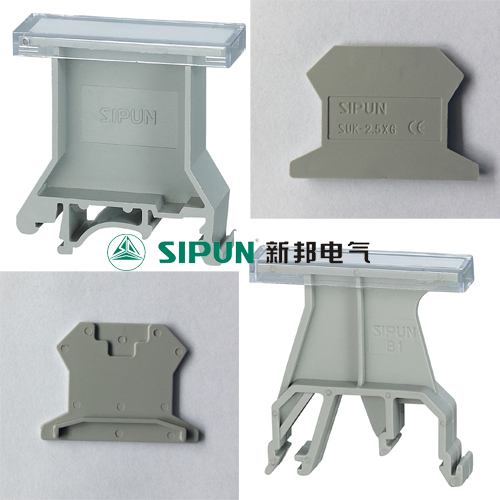

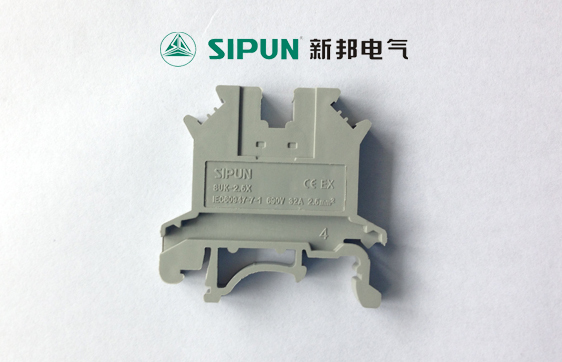

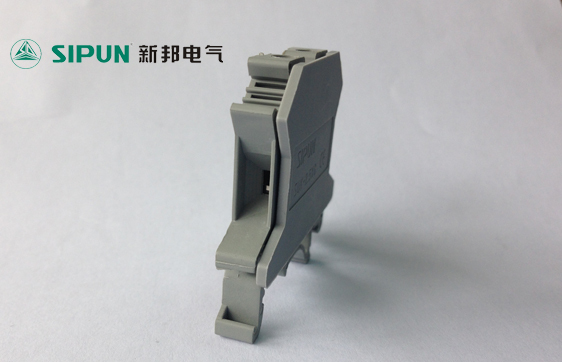

Product shows:
